How To Make Planer Boards For Trolling
By JR Watson

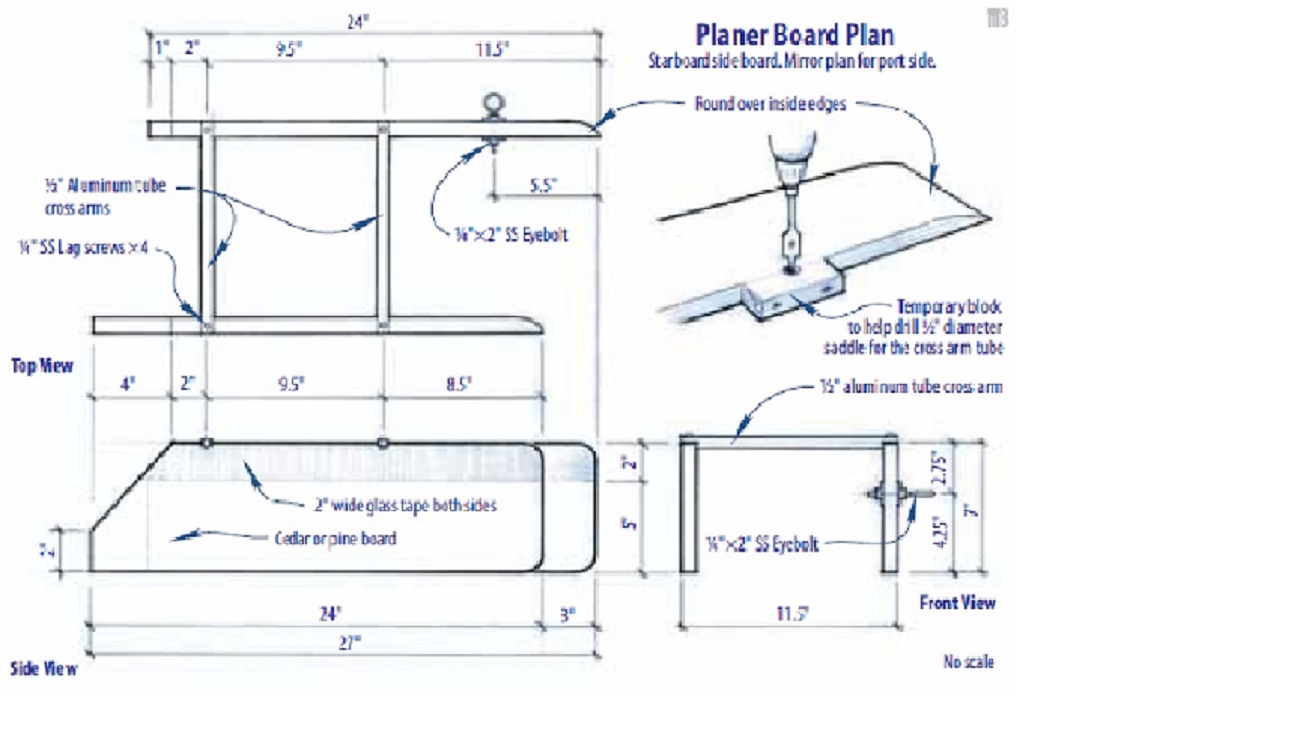

Read: how to make planks for trolling Planers allow more lines to be caught at the same time and are used to drop lures and harnesses away from boats when trolling at low speeds (less than 2 knots). They are commonly used when fishing for walleye. You can achieve a larger dimensional difference with a planer board than with a planer. A good planer board should go far away from each side of the fishing boat with little effort, no excessive drag or splashing, good tracking, seaward capsizing resistance, high durability. , and painted so that it is easily visible. The following is a successful design that is easy to build and requires no ballast. The planer boards are asymmetrical catamarans made in pairs; each is a copy of the other. Usually 1 × 8 ″ is sufficient (3/4 ″ × 7½” nominal). Cedar or pine works well (plywood is too heavy). Cut the boards to size and shape the bows as shown. Drill a hole to create an eyeshadow hole in the position shown. The tube shall be of light aluminum. I use discarded ½” diameter (bent) ski stakes (most are made of T6061 thin-wall alloy). Clip a temporary piece of wood as shown and drill (using a spade cutter) to create a saddle that matches the aluminum pipe diameter. Cover the surface of the planer board with a thin layer of epoxy WEST SYSTEM® 105/205 to seal the wood. Make sure the cotton swab inside the ankle hole has been drilled to protect the exposed end bead. A second coat may be required on the ends where the end grain soaks into the epoxy. Apply a 2-inch strip of fiberglass tape as shown in the area of the tube attachment. Fiberglass tape will help prevent warping and splitting of boards due to lateral forces. Mix the tape with a thick fairing mix with 410 Microlight™. Allow everything to heal. Then all the sand rises to a fine grain and mix everything well. Twist the eye bags as needed to let the bags pass without force. Read more: How to add emojis on tumblrCut pipes by length. Fill the top ¾” of the tube with the frosting mixture and let it solidify. Align the two planer board components as shown, making sure to maintain parallel and vertical alignment. Place the tube in the saddle and drill through the tube and into the planer board as shown. The hole should be larger than the diameter of the screw so that the screw can be pushed through the aluminum tube and into the wood without needing to screw the screw. Remove the screw and tube. Apply epoxy paint WEST SYSTEM 105/205 (tidy) on the surface of the saddle and interior holes. Then thicken the epoxy with 406 Colloidal Silica to a mayonnaise-like consistency and apply an adequate amount to the hole, screw and saddle surfaces. Place the tubes in their place and press all the hysteresis screws through the tubes and into the board. Clean off excess epoxy and then let everything cure in place overnight. The structure will be strong and solid, smoothing all surfaces with 80-grit sandpaper. File the ends of the aluminum tubes so that they are smooth and flush with the edge of the planer board. Paint all surfaces with multiple coats of a sprayable matte primer that corrects imperfections for the desired finish. Follow up with the autographer’s “One Shot” (it covers very well, has vibrant colors, and dries quickly). Install the sealing ring. The length of the border allows for some adjustments that will affect tracking; start with the middle setting. Last step: go fishing. MATERIALS LIST1-1 × 8 ″ × 8 ′ Cedar or pine4-½” × 11 Aluminum 8-¼” × 2 SS Delay screw 2-¼” × 2 ″ SS Eyebolts4-¼” NutsRead more: how used masturbator for men Large washer 4-¼” 60 ″ -729 2 ″ Glass TapeWEST SYSTEM 105-A ResinWEST SYSTEM 205-A Hardener300 Mini Pumps406 Colloidal Silica410 MicrolightPrimerPaintRead more: Smashy Road: Wanted 1.4.4 ( MOD money unlimited)
